We specialize in providing the following machinery rentals and services:

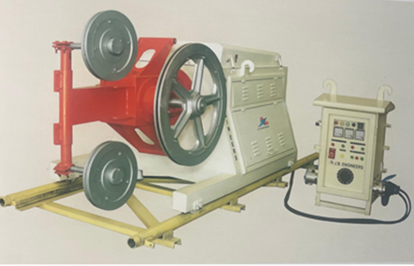

Wire Saw Cutting Machine
Available 75HP and 60HP wire saw Machine to suit the entire Marble & Granite quarry with competitive price. The machine has aapprox. weight of 1900 Kg. This provided better stability and accuracy in quarrying for maximum efficiency, we provide a comprehensive service package which includes Training commissioning and operative instruction.
Description :
- Machine is equipped with 1 H.P D.C. motors with Variable speed or 2H.P A.C. drive motor as per requirement.
- Machine works through worm and worm wheel.
- Independent control panel
- 850 mm main pulley giving 75 HP wire saw speed of 24 m/ Sec.
- 800 mm main pulley giving60 & JB 40 HP wire saw speed of 24 m/ Sec.
- 600 mm main pulley giving 20 HP wire saw speed of 24 m/ Sec.
Dimensions
- 75HP - Height- 1400 mm, L- 2900 mm, W- 320 mm, Weight- 2100 kg approx (Kw 55)
- 60HP - Height- 1200 mm, L- 2700 mm, W- 300 mm, Weight- 1900 kg approx (Kw 45)
- 40HP - Height- 1000 mm, L- 2500 mm, W- 280 mm, Weight- 1500 kg approx (Kw 30)
- 20HP - Height- 900 mm, L- 2400 mm, W- 260 mm, Weight- 1100 kg approx (Kw 15)

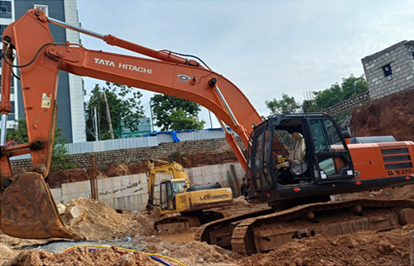

Tata Hitachi 370 Excavator
Primary Applications: Ideal for heavy-duty work such as granite and marble quarrying and large-scale bulk excavation.
Key Features:
Engine: Powered by an Isuzu AA-6HK1X engine, it delivers a net power of 246.8 HP (184 kW) and a maximum torque of 873 Nm at 1700 rpm.
Durability: The machine is built with high-tensile steel, a reinforced boom and bucket, and a strengthened undercarriage for reliable performance and a long service life.
Performance: Features a hydraulic system that provides a flow rate of 2 x 279 L/min, enabling a maximum digging depth of 6810 mm and a bucket capacity of up to 2.5 m³.
Technology: Equipped with a 7" LCD monitor, auto climate control, and a comfortable suspension seat for operator comfort and efficiency.It also includes telematics for remote monitoring.
Weight: Operating weight is approximately 35,400 to 35,900 kg

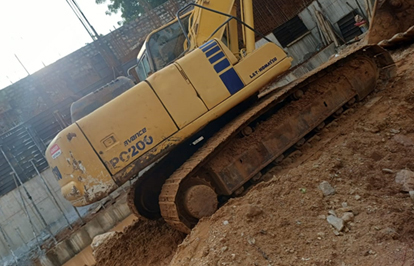

L&T 200 Excavator (Komatsu PC 200)
Primary Applications: A versatile hydraulic excavator for general construction and excavation tasks.
Key Features:
Engine: Uses a Komatsu SAA6D102E-2 engine with a flywheel power of up to 143 HP (106.6 kW).
Performance: Has a maximum digging depth of approximately 5.5 to 7 meters and a bucket capacity ranging from 0.64 m³ to 1.2 m³.
Hydraulic System: Features a "HydrauMind" (Hydraulic Mechanical Intelligence New Design) system, which provides a high maximum flow rate of 428 L/min for smooth and powerful operation. It includes four working modes (active, economy, breaker, and lifting) for different tasks..
Design: Designed for easy serviceability with an orderly arranged cooling system, easy-to-change engine oil filter, and skid-proof surfaces for safer maintenance.
Comfort: The cab is spacious with an adjustable seat, low vibration features, and ergonomic controls to ensure operator comfort during long workdays.
Weight: Operating weight is typically around 19,180 to 20,000 kg.

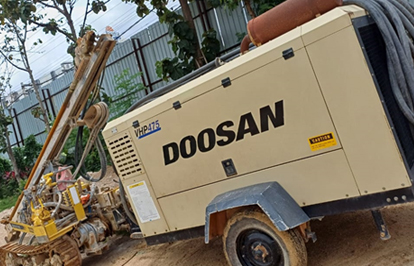

DOOSAN VHP 475 Air Compressor:
Powering Your Drilling Applications
Product Overview The Doosan VHP 475 is a robust and reliable portable air compressor designed for demanding applications in the stone processing and quarrying industry, including:
- Mechanized quarrying with pneumatic drills
- LD4 in granite mining
- Abrasive blasting
- Rock anchoring
Key Features:
Engine: Powered by a reliable Ashok Leyland H6DTi 170 HP engine, designed for operation in high ambient temperatures (up to 55°C).

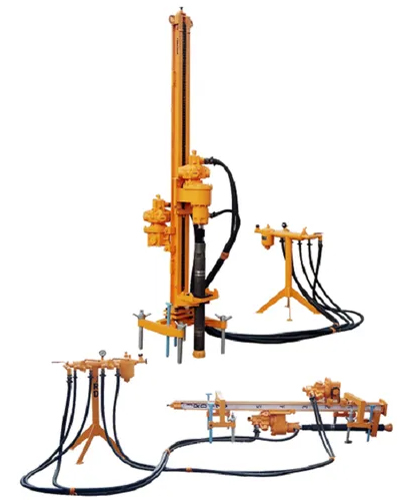

Drilling Machines: PH-120
Type: Hydraulic Core Drilling Machine
Applications: Suitable for quarrying, mining, and construction drilling operations
Features:
Specifications (typical):

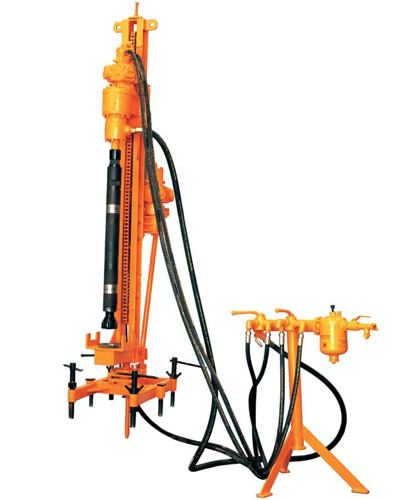

Drilling Machines: LW-120
Type: Hydraulic Core Drilling Machine
Applications: Suitable for quarrying, mining, and construction drilling operations
