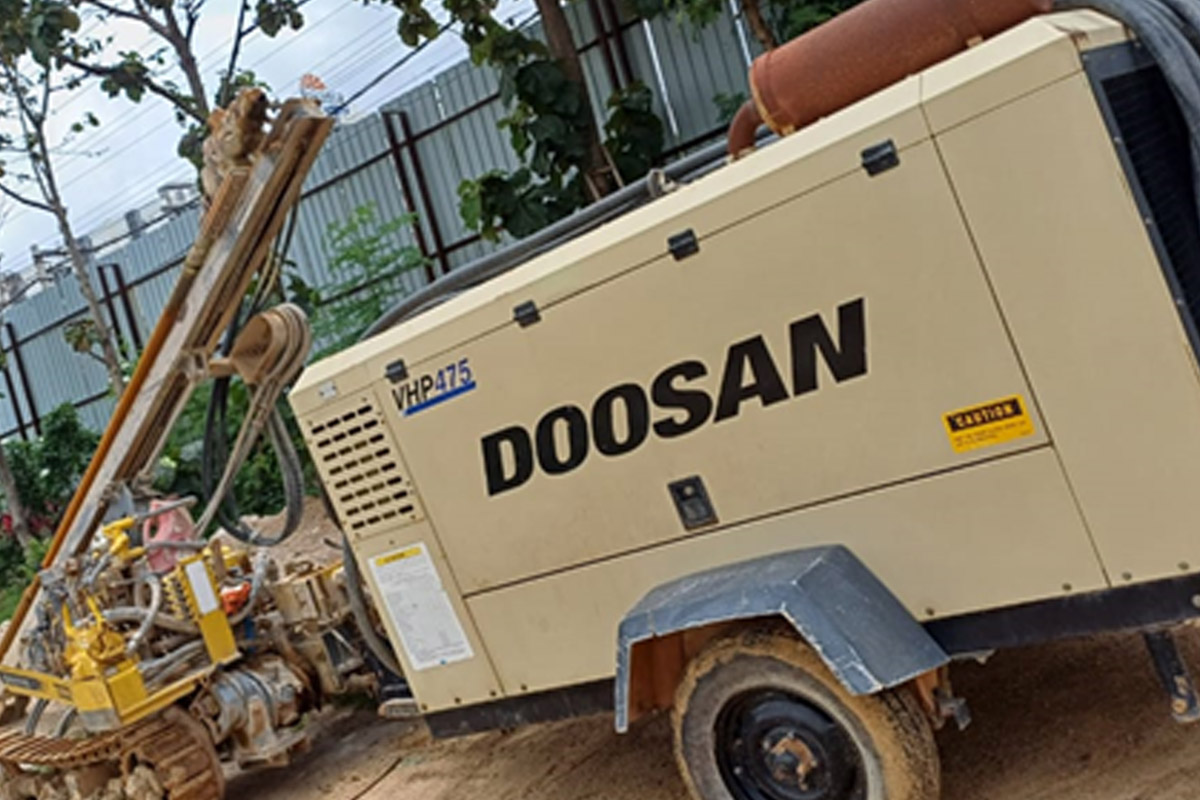

DOOSAN VHP 475 Air Compressor
Product Overview The Doosan VHP 475 is a robust and reliable portable air compressor designed for demanding applications in the stone processing and quarrying industry, including:
Mechanized quarrying with pneumatic drills.
LD4 in granite mining.
Abrasive blasting.
Rock anchoring.
Key Features
Engine: Powered by a reliable Ashok Leyland H6DTi 170 HP engine, designed for operation in high ambient temperatures (up to 55°C).
Performance:
Free-Air Delivery: 475 cfm (13.5 m³/min)
Operating Pressure: 200 psi (14 bar)
Pressure Range: 70–200 psi (4.8–14 bar)
Durability & Design:
Rugged enclosure built to withstand dusty environments.
Cool box design ensures low internal temperatures, enhancing durability.
Inbuilt pre-cleaners are a standard feature for high-dust environments.
Maintenance-free batteries.
Heavy-duty drawbars and leveling jacks for towing in rugged terrain.
Efficiency & Serviceability:
Copiously sized 180-liter fuel tank for continuous operation.
Easy access to service points for hassle-free maintenance.
Wider doors for ease of serviceability.
Dimensions & Weight:
Length: 4080 mm (161 in).
Width: 2030 mm (80 in).
Height: 2300 mm (90 in).
Working Weight: 2350 kg (5180 lbs).
