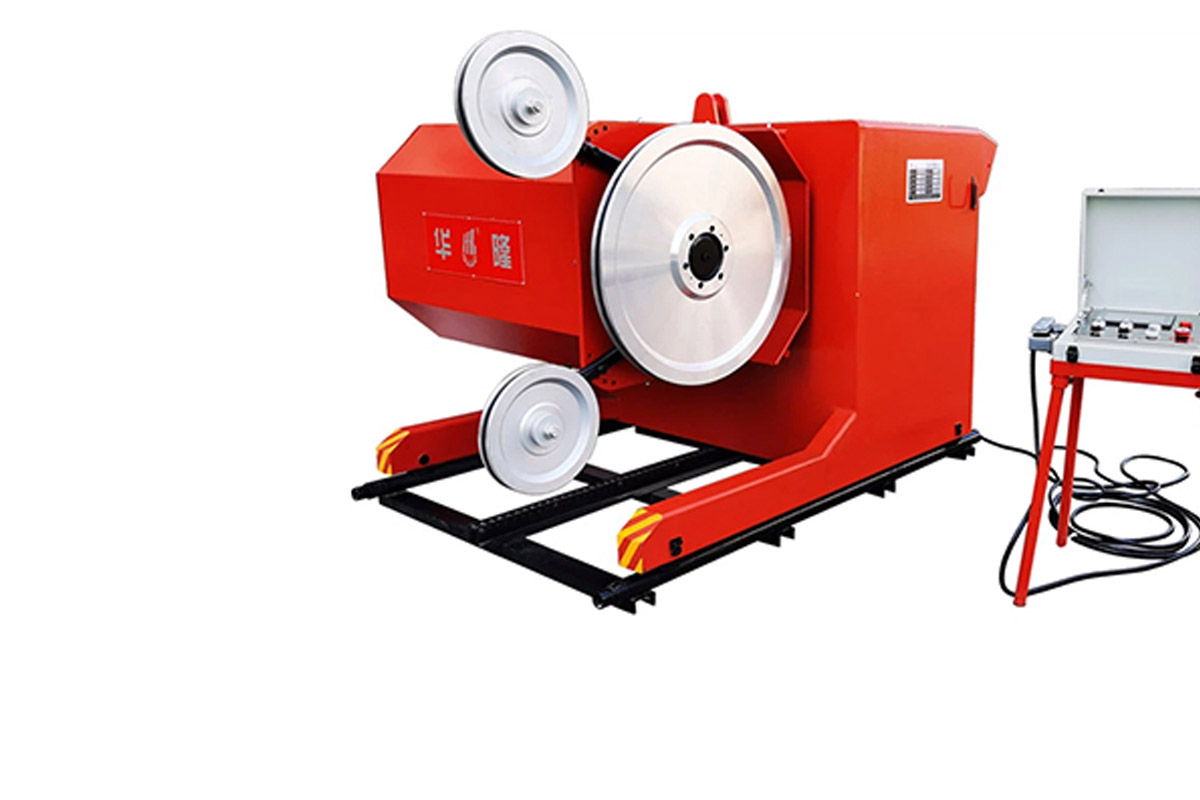

Wire Saw Cutting Machine
Available 75HP and 60HP wire saw Machine to suit the entire Marble & Granite quarry with competitive price. The machine has a approx. weight of 1900 Kg. This provided better stability and accuracy in quarrying for maximum efficiency, we provide a comprehensive service package which includes Training commissioning and operative instruction.
Description
Machine is equipped with 1 H.P D.C. motors with Variable speed or 2H.P A.C. drive motor as per requirement.
Machine works through worm and worm wheel.
Independent control panel.
850 mm main pulley giving 75 HP wire saw speed of 24 m/ Sec.
800 mm main pulley giving 60 & 40 HP wire saw speed of 24 m/ Sec.
600 mm main pulley giving 20 HP wire saw speed of 24 m/ Sec.
Dimensions
75HP - Height- 1400 mm, L- 2900 mm, W- 320 mm, Weight- 2100 kg approx (Kw 55)
60HP - Height- 1200 mm, L- 2700 mm, W- 300 mm, Weight- 1900 kg approx (Kw 45)
40HP - Height- 1000 mm, L- 2500 mm, W- 280 mm, Weight- 1500 kg approx (Kw 30)
20HP - Height- 900 mm, L- 2400 mm, W- 260 mm, Weight- 1100 kg approx (Kw 15)
